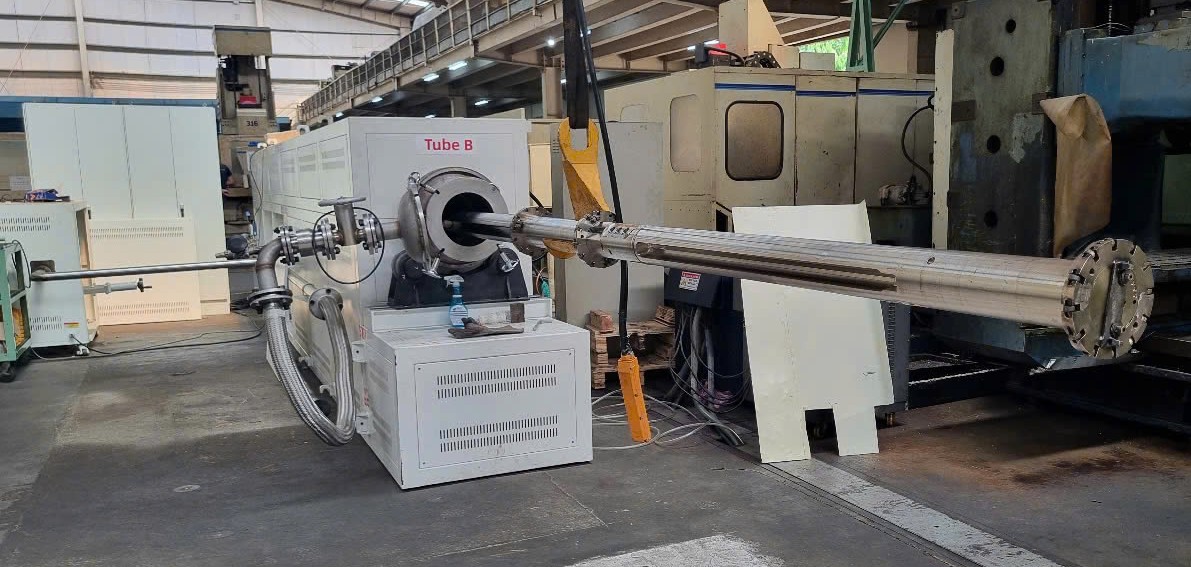

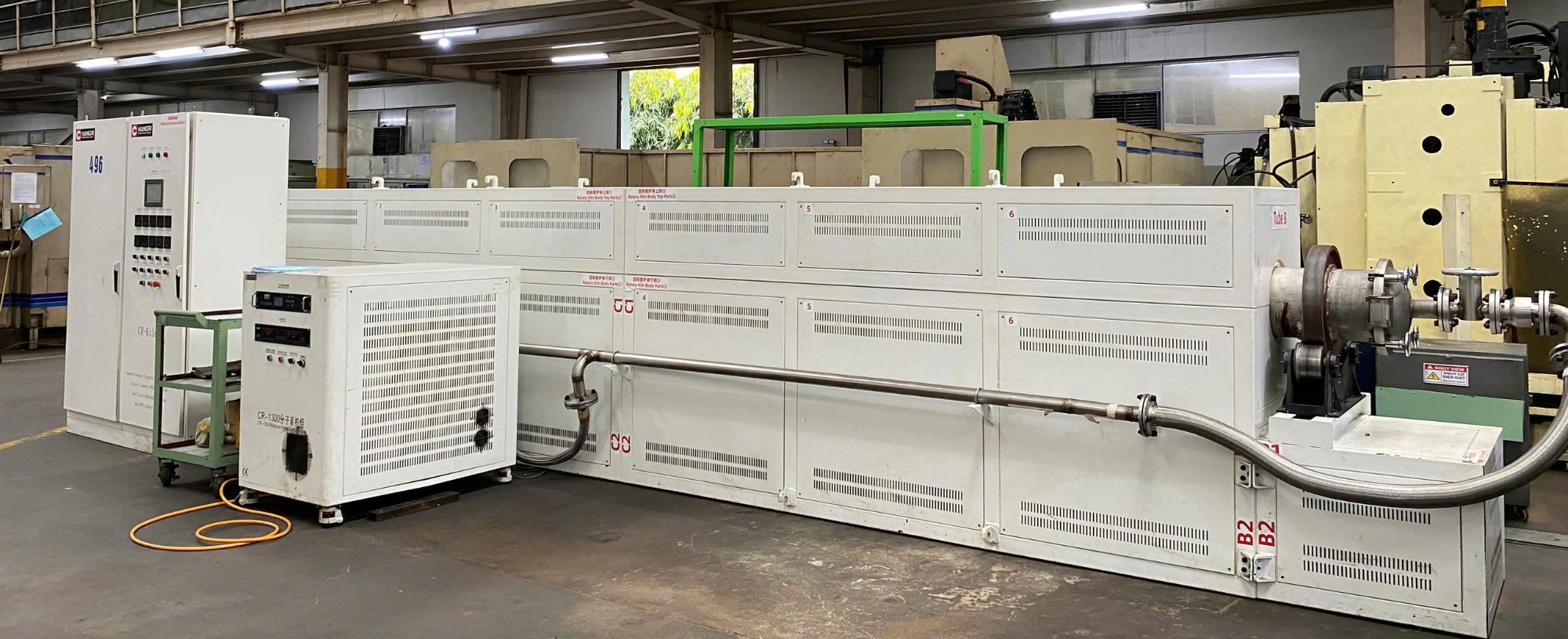

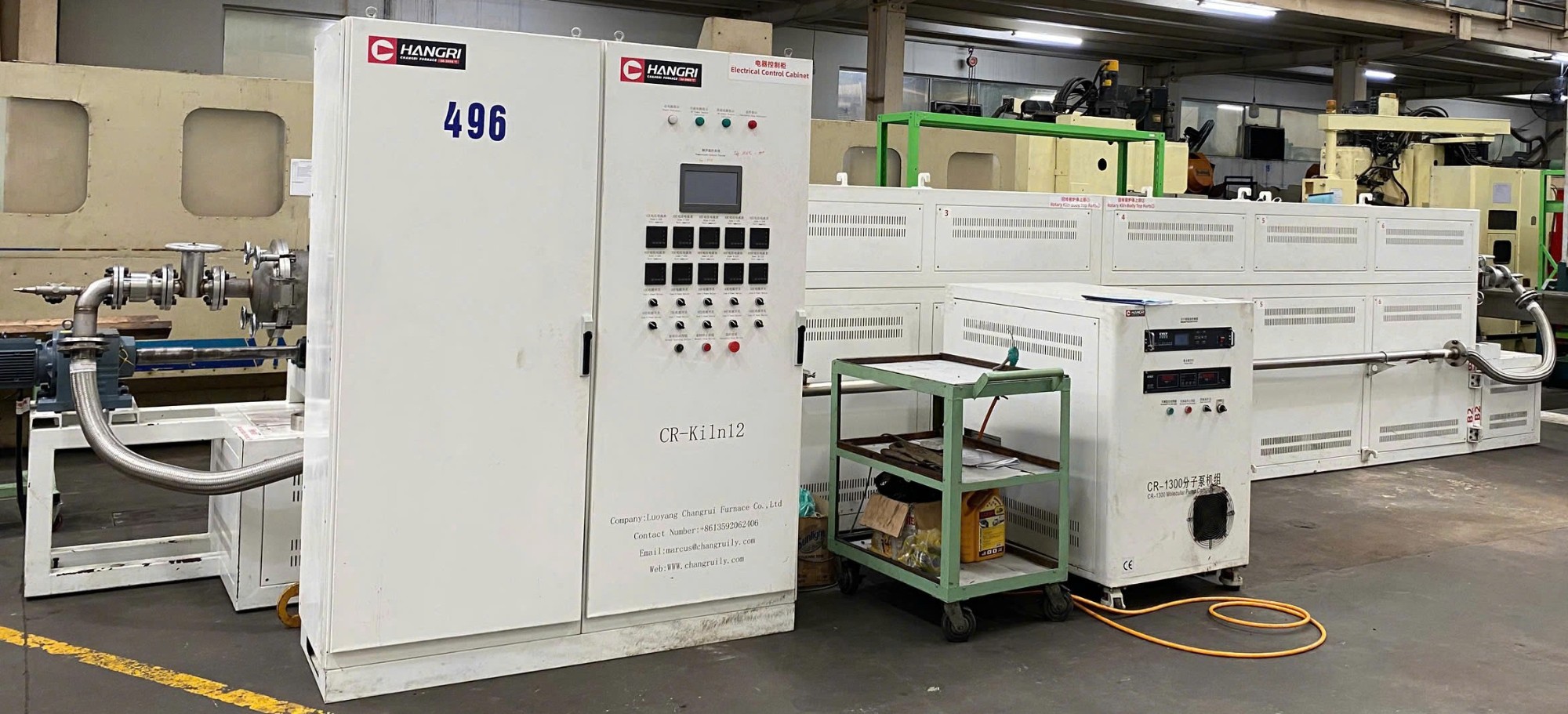

Long Vacuum Heating furnace tube Dia 10.4" x 307" Length
- Max temperature :1200 °C
- Working Temperature : 0-1150 °C
- Heating furnace tube size : Dia265x7800mm
- Effective Heating Length : Dia265x6500mm
- Heating element : Resistance wire
- Temperature Controller : 10 temperature controlling system
- Rotary Speed : 1-15 r/min
- Power : 380V/50Hz/3 - phase
- Vacuum : 10-3-10-6 Pa Vacuum
- Vacuume system : yes
- Atmosphere system : argonz
- Rotary system
- Vacuum pump : with 1 set
- Stainless steel tube thickness : 22mm
- 1400 type ceramic fiber board

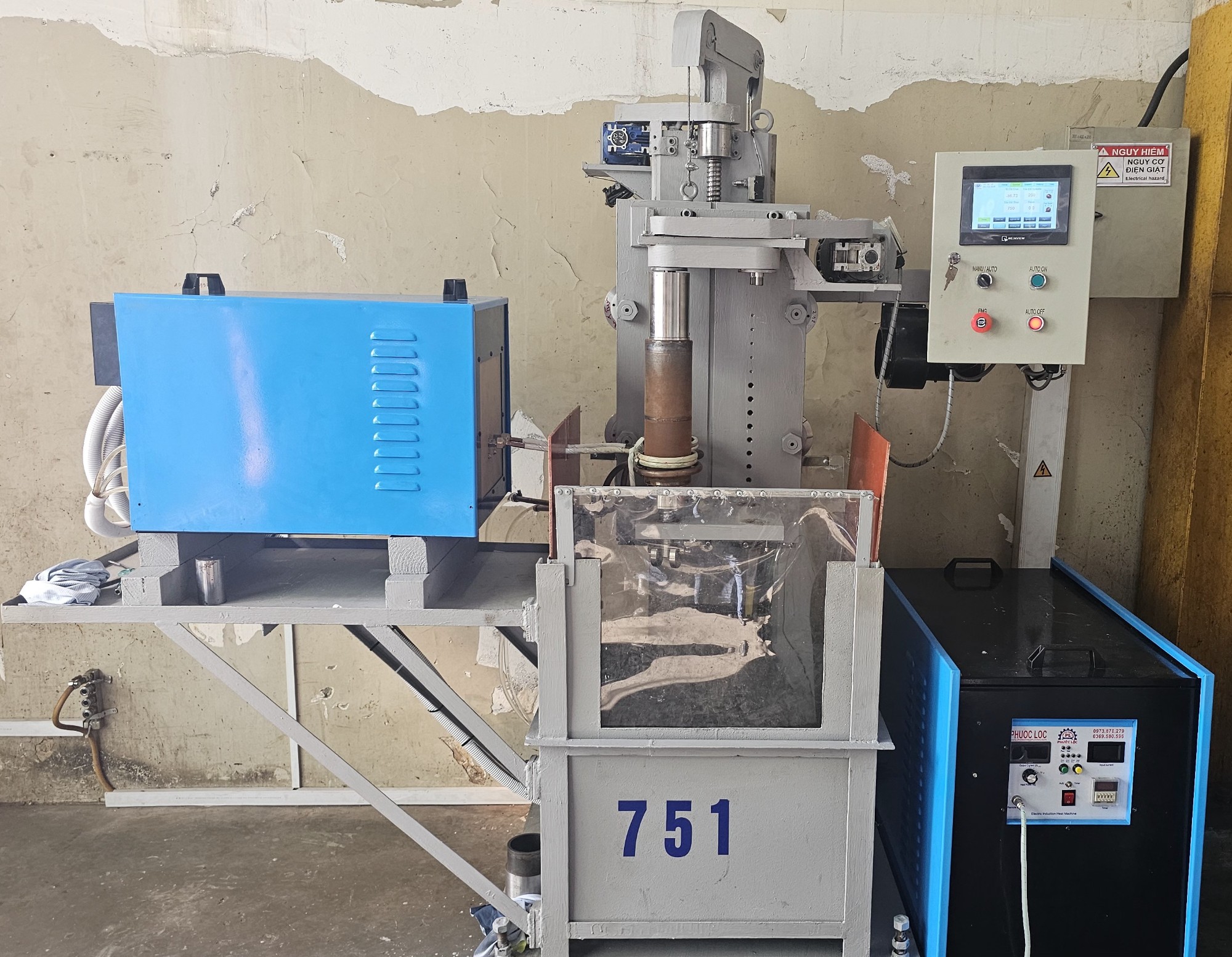

Hardening Machine 100 kVA :
- Rated Power : 100 kVA
- Power Supply : 380V/3 Phase / 50Hz
- Frequency Range : 100-400 kHz
- Spray Water Cooling System
